A solar light panel is almost always the problem when a garden light stops working if it reads under about 17 volts in full sun. Most solar path lights use a 12V nominal panel, and a healthy one puts out 18 to 28 volts open circuit. If yours shows nothing, or a fraction of a volt, you have found your answer.
That said, most dead solar lights are not dead panels. They are a battery that has aged out, a switch that got knocked to off, or a corroded contact. Knowing how to tell if a solar panel on a light is bad means ruling those out first, then measuring the panel itself. The whole check takes about fifteen minutes and one tool you probably do not own yet.
Before we get into readings, one note on the numbers floating around online. Guides about rooftop arrays quote open circuit voltages of 37 to 42 volts. That is not your light. A small garden panel is a fraction of the size, and comparing its reading to a roof panel’s spec is the single most common reason people think a perfectly good panel has failed.
Table of Contents
- What You Need
- Step-by-Step
- Step 1: Check the Light’s Basic Components
- Step 2: Test Whether the Panel Is Charging
- Step 3: Inspect the Panel for Physical Damage
- Step 4: Decide Whether the Panel Is Bad
- Common Mistakes
- Frequently Asked Questions
- Can I tell if a solar light panel is bad just because the light does not turn on?
- How do I test a solar panel for charging with a multimeter?
- Does a solar garden light work on cloudy days?
- Should I replace the battery before replacing the solar panel?
- What does a scratched or cloudy solar panel mean?
- Is it safe to open and repair a solar garden light?
What You Need
You do not need much. Most of the diagnosis happens with your eyes and a bit of daylight.
- A small screwdriver or Torx driver. Solar light housings are usually held together with three or four small screws. Some use Phillips, some use Torx T10, so check before you force anything.
- A digital multimeter. Any basic model that reads DC voltage and DC current will do. You do not need a graphing meter or an expensive clamp meter for this job.
- A clean microfibre cloth and a little water. Grit and pollen film on the glass cause more lost charging time than most people expect.
- Plastic polish or a headlight restore kit. This is for hazy, whitened panels, and it works better than it has any right to.
- A spare AA NiMH rechargeable battery. NiMH cells are the most common battery in these lights. Having one charged to hand makes the isolation test in step 1 quick.
- The light’s own instructions, if you still have them. A few models use a specific battery type or a hidden reset sequence.
One safety point before you open anything: a solar panel makes voltage whenever light hits it. That includes a desk lamp and an overcast afternoon. There is no shock risk here and no mains connection, but keep the panel shaded while you work on the wiring so you are not reading live voltage you did not expect.

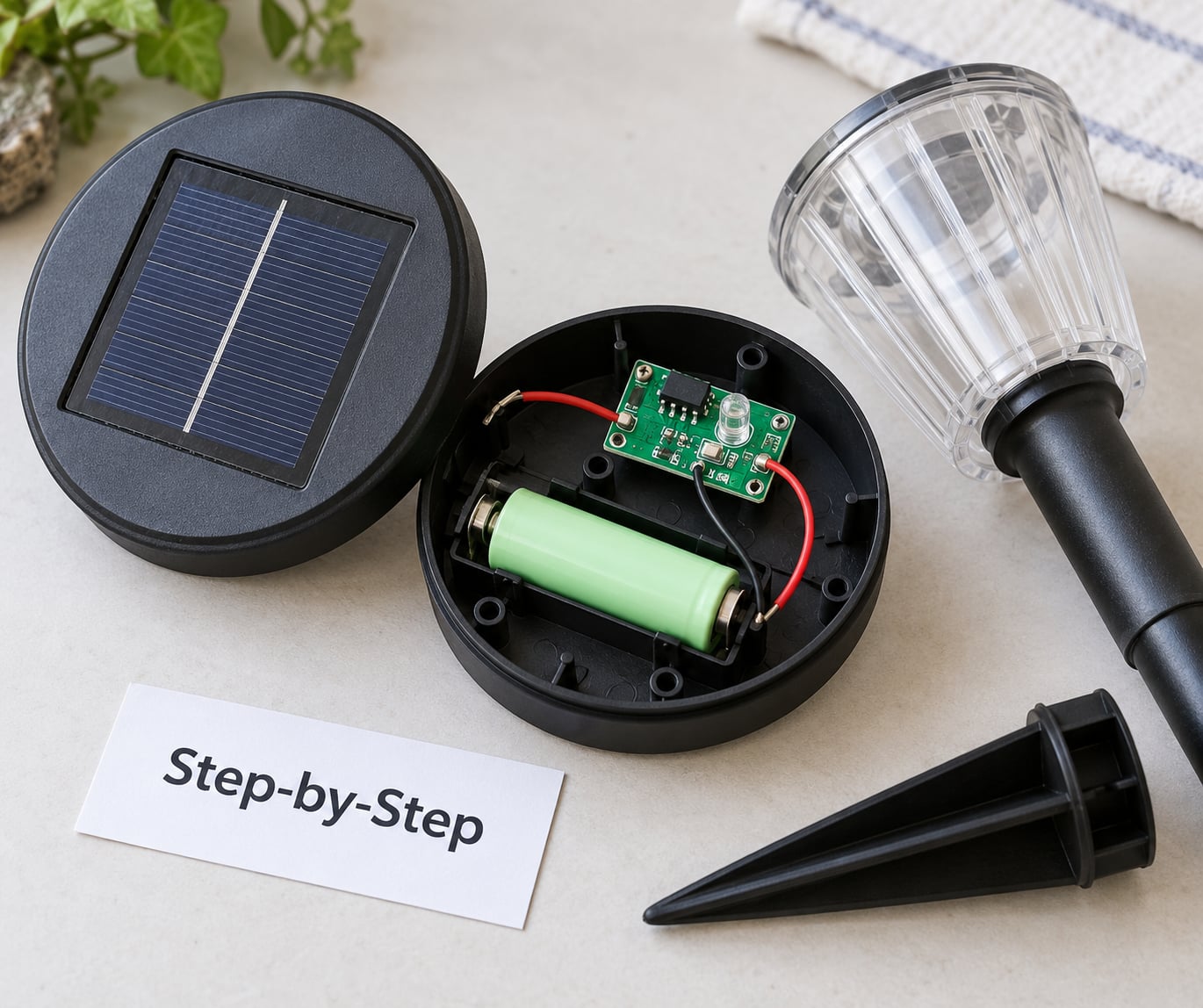

Step-by-Step
Step 1: Check the Light’s Basic Components
Start here, because these fixes take two minutes and the panel is the expensive guess at the end. Find the on/off switch. These lights ship with it set to off, and a switch moved by a dog, a mower or a pocket in a jacket is a genuinely common fault. A light that only works when you hold a finger on the switch usually has a dirty or cracked light sensor, not a dead panel.
Open the battery compartment. On a new light, look for a small insulating pull tab between the cells and the contacts. It ships in place and blocks charging entirely. On an older light, check whether the cells are seated firmly and whether the metal contacts are green, white or furry with corrosion. Push them clean with a cotton bud dipped in isopropyl alcohol, and make sure the springs are still springy.
Now do the isolation test. Drop in a fresh AA NiMH cell with some charge in it and cover the light sensor completely with your hand or black electrical tape. If the LED comes on, the panel, controller and wiring are all fine. The fault is the original battery.
| Symptom | Most likely cause | Where to look |
|---|---|---|
| Works after a week of sun, then dies by midnight | Battery cannot hold charge | Battery cell or contacts |
| Never lights, no matter the weather | Switch off, pull tab in, dead battery | Switch and battery bay |
| Flickers or works only when you press the housing | Loose or corroded internal connection | Wiring and circuit board |
| Bright for a few nights after a charge | Panel charging poorly, usually haze or shade | Panel surface |
| Completely dead after a season or two outdoors | Battery aged out, usually NiMH cycle life | Battery first, panel second |
| Water pooled or rust marks inside the housing | Water ingress corroding contacts | Seal, contacts, board |
| One section of the panel darker or discoloured | Cracked cell or failed bypass diode | Panel face |

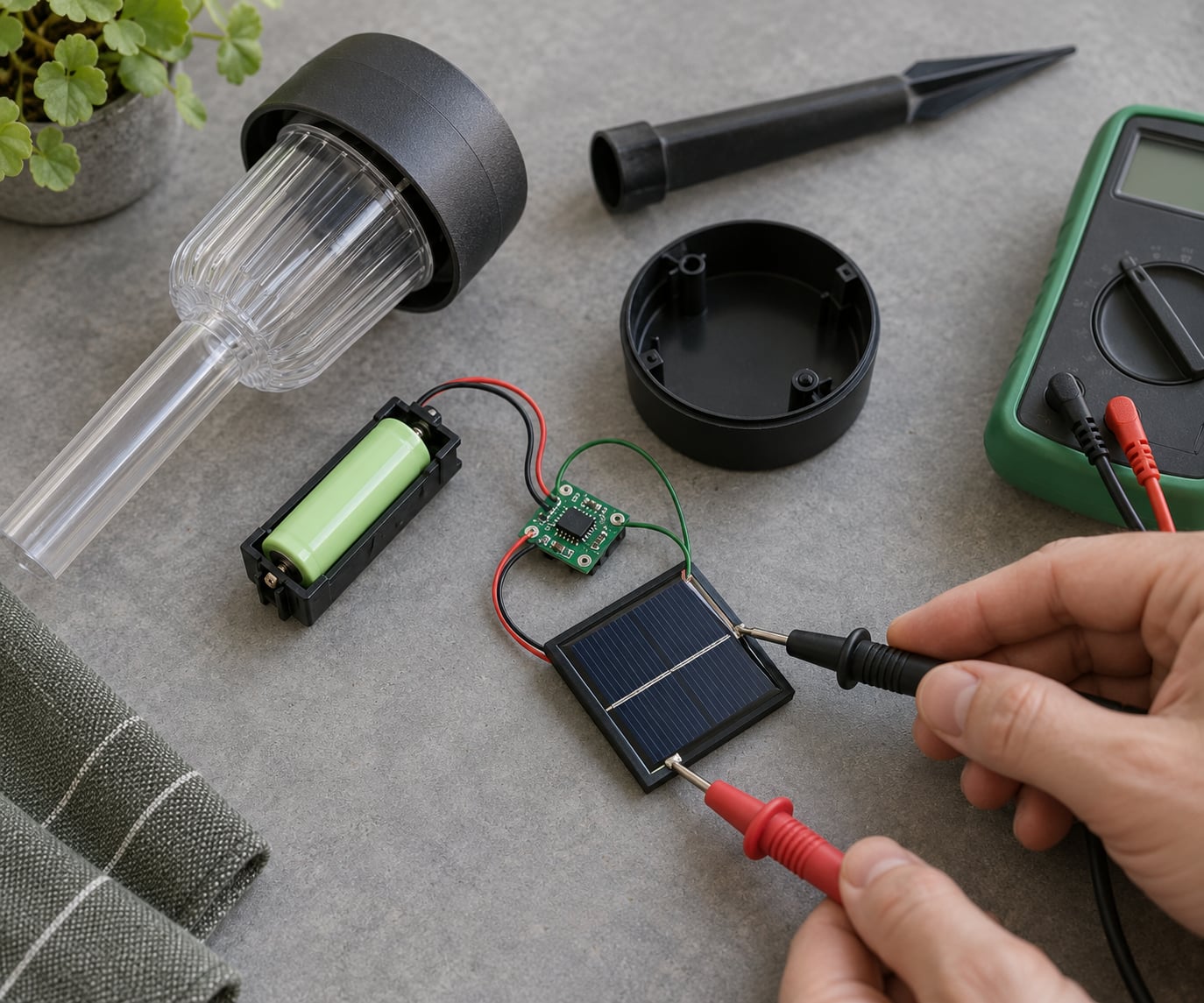

Step 2: Test Whether the Panel Is Charging
This is the measurement that gives you a real answer instead of a guess. Disconnect the panel from both the battery and the charge controller so the meter reads the panel alone. A small garden panel is usually a two-wire plug, or a pair of soldered leads, and the controller sits between the panel and the battery on the circuit board.
Set your meter to DC volts, on the 20V range or higher. Do not use the current setting yet. Put the light in direct midday sun with nothing shading the panel, and hold the probes on the panel’s two output leads. That reading is open circuit voltage, or VOC, and it is the single most useful number in this whole process.
| Reading on a 12V nominal garden panel | What it means |
|---|---|
| 18V to 28V | Panel is healthy, move on to the battery and wiring |
| 17V to 18V | Borderline, check for haze, shade and a cold panel |
| Under 17V | Panel is bad, or a lead has come loose behind it |
| 0.0V | Open circuit, cracked cells or a disconnected wire |
Two details catch people out here. First, test in full sun, not a bright room or under a lamp. A panel tested indoors reads low and gets condemned unfairly. Second, cold panels read higher than warm ones, so a reading taken early in the morning is not directly comparable to one taken at noon. Take your number and then take a second one ten minutes later; if it drops noticeably, the panel is responding normally and the first figure was inflated by cold.
To check current as well, move the leads to the 10A port on your meter, set the dial to DC current at 10A, and bridge the two panel terminals through the meter. A healthy small panel gives somewhere around 0.1 to 0.5 amps in full sun. Zero amps alongside a healthy voltage reading means a cracked cell or a failed bypass diode inside the panel, and both are terminal faults. Never probe current through the voltage sockets. People blow their meter’s fuse this way, and the fuse is the cheap part but the whole meter is not.
Finally, compare against a working light if you have one. Put both panels in the same sun at the same time of day and read them back to back. That comparison is worth more than any spec sheet when you are deciding whether a 19V reading is good for your particular panel.
Step 3: Inspect the Panel for Physical Damage
Measurements tell you what the panel is doing. Your eyes tell you why. Look at the face of the panel under angled light rather than straight on, because hairline cracks only catch the light from the side.
- Cracks across the cells. Often visible as dark lines. A cracked cell shorts the string, and voltage collapses.
- Delamination. Bubbles or a lifted edge where the laminate has separated from the cells. Any bubbling means moisture got in behind the seal.
- Corrosion. White, green or blue-green crust around the contact pads, or anywhere on the back where the leads attach.
- Scratches and haze. A whitened, chalky film is UV damage to the plastic surface rather than dead cells. Output can drop by around 40% and it looks like a dead panel. This one is fixable.
- Water ingress. Rust on the battery contacts or a green crust on the circuit board traces means moisture got past the seal. Check here even if the panel reads fine.
- Shaken or chewed wires. Inside the housing, wires work loose where the panel flexes. Squirrels and mice will happily take a pair. If the light works when you wiggle it, this is your fault.
Clean the panel while you have it open. Wipe it with a damp cloth, dry it, then if it is hazed, work a plastic polish or headlight restore kit across the surface in small circles. Ten minutes of that usually brings back most of the lost output. Never use an abrasive, a scraper or a solvent, and never press hard on the face.
Step 4: Decide Whether the Panel Is Bad
Put the evidence together. A panel is bad when it reads under about 17V in full sun with its leads disconnected from everything, or when it reads healthy voltage but zero current, or when you can see cracked cells or delamination that will not clear. Panel voltage that is fine but no light at night means the fault is downstream, in the battery, the controller or the switch.
Repair is sensible when the damage is limited to corrosion, a dirty surface, haze or one loose wire. Clean, treat and retest before you spend anything. Replace the panel, or the whole light, when the reading is hopeless, when cells are cracked or lifting, or when the housing seal has failed and moisture has reached the board. If you are not comfortable with a soldering iron and a meter, take the light to an electronics repair shop or claim it under warranty. Solar garden lights are cheap enough that a professional repair rarely makes financial sense, but it can still be the right call on a nicer fixture.
Common Mistakes
Almost every misdiagnosis I have seen traces back to one of these.
Testing in poor light. A panel under a porch soffice, behind a hedge or behind a double-glazed window will read low no matter how healthy it is. Move the light into open sun. Glass alone can cut charging substantially, so a light charging through a conservatory roof is a common false negative.
Using the wrong socket for current. Short circuit current goes through the 10A port on the meter’s front panel. On the fused voltage port it blows the internal fuse instantly. Check the manual if your model is not labelled, and treat a dead meter after a current test as a blown fuse rather than a damaged meter.
Ignoring a deeply discharged battery. NiMH cells that drop below roughly 1.1V per cell will refuse a charge from a tiny panel. Switch the light off and leave it in full sun for two or three days, then test again. That single rest revives a surprising number of “dead” lights. Skip the rest on a brand new light too, and give it 36 to 48 hours of sun before judging anything.
Calling haze a dead cell. Whitened plastic and dead silicon look almost identical from a distance, and the fix is completely different. Haze polishes out. Cracked cells do not. Test before you throw the panel away, because replacing the whole light for a haze problem is the most common wasted fix in this whole category.
Leaving the switch off. Many lights charge and operate simultaneously, some do not. If the light looks dead but the panel is fine, flick the switch and cover the sensor before you open anything up.
Assuming the newest light is the best one. Fresh lights arriving flat or nearly flat are common. A full initial charge in full sun usually sorts it, and a battery that shipped with a pull tab still in place will never charge at all.
A maintenance routine worth two minutes a month keeps most of this away: wipe the panel, check the switch is on, glance at the battery contacts for fuzz, and pop fresh cells in every two or three seasons. NiMH cells run out around 500 to 800 charge cycles, so batteries are the part that dies first, every time.
Frequently Asked Questions
Can I tell if a solar light panel is bad just because the light does not turn on?
No. A light that will not switch on proves nothing about the panel. Rule out the switch, the battery pull tab, the cells themselves and a blocked light sensor first. Cover the sensor with your hand to force the LED on. If it lights that way, the panel is charging fine and the battery is the problem.
How do I test a solar panel for charging with a multimeter?
Disconnect the panel from the battery and charge controller, set the meter to DC volts on a 20V or higher range, and probe the two output leads in full sun. That is the open circuit voltage. On a 12V nominal garden light panel, 18 to 28V is healthy and under 17V means a bad panel or a loose lead.
Does a solar garden light work on cloudy days?
Yes, but for less time. Cloud cover cuts charging significantly, and a light that has had a dull week may only run for an hour or two before switching off. In winter the same effect applies even on clear days because the sun sits lower. Persistent dullness is a positioning or panel condition problem, not a broken panel.
Should I replace the battery before replacing the solar panel?
Always test the battery first. Batteries fail far more often than panels because NiMH cells wear out after roughly 500 to 800 charge cycles while the panel usually lasts several seasons. Swap in a charged AA NiMH cell and cover the sensor. If the light runs, the panel is fine and you have saved yourself a replacement.
What does a scratched or cloudy solar panel mean?
A whitened, chalky film is UV damage to the protective plastic surface rather than damage to the cells themselves, and it can cut output by around 40%. Clean it, then work a plastic polish or headlight restore kit across it in small circles and buff it off. Cracks that reach the cells, or bubbling where the laminate has lifted, are not fixable.
Is it safe to open and repair a solar garden light?
Yes, these lights carry no mains voltage and the risk is minimal. A panel produces a few volts whenever light hits it, including from a desk lamp, so cover it while you work on the wiring. Keep water away from the open housing, and expect a small amount of moisture and corrosion inside if the seal has failed.
So start where the odds are. Check the switch, pull the tab if the battery is new, and drop in a charged cell while you cover the sensor. If the light comes on, nothing is wrong with the panel at all. If it stays dark, disconnect the panel wires and read open circuit voltage in full sun. Under about 17V means you have your answer, and you have just worked out how to tell if a solar panel on a light is bad for every light you own from here on.
